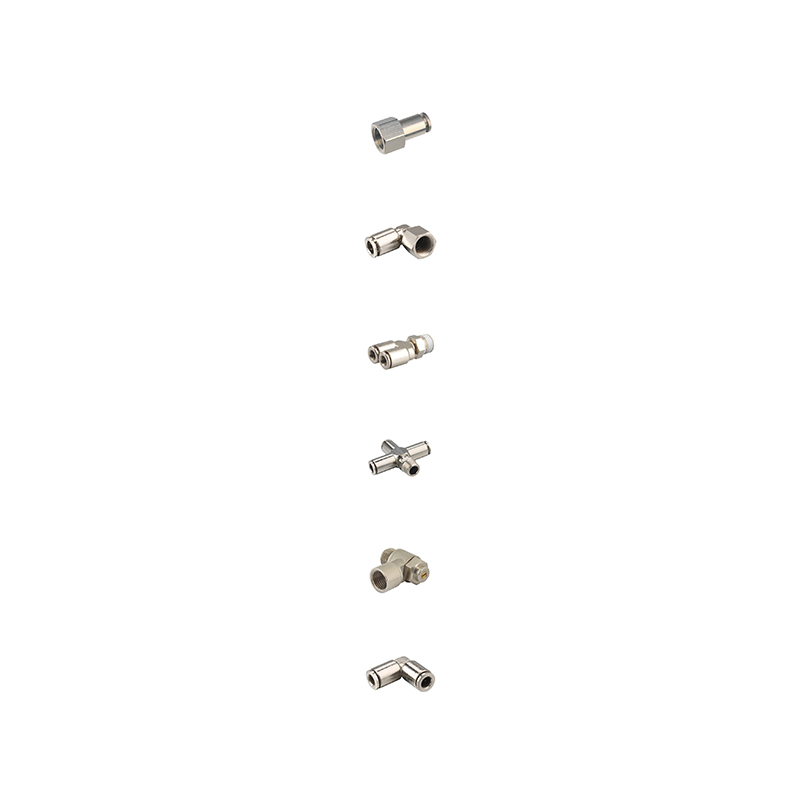

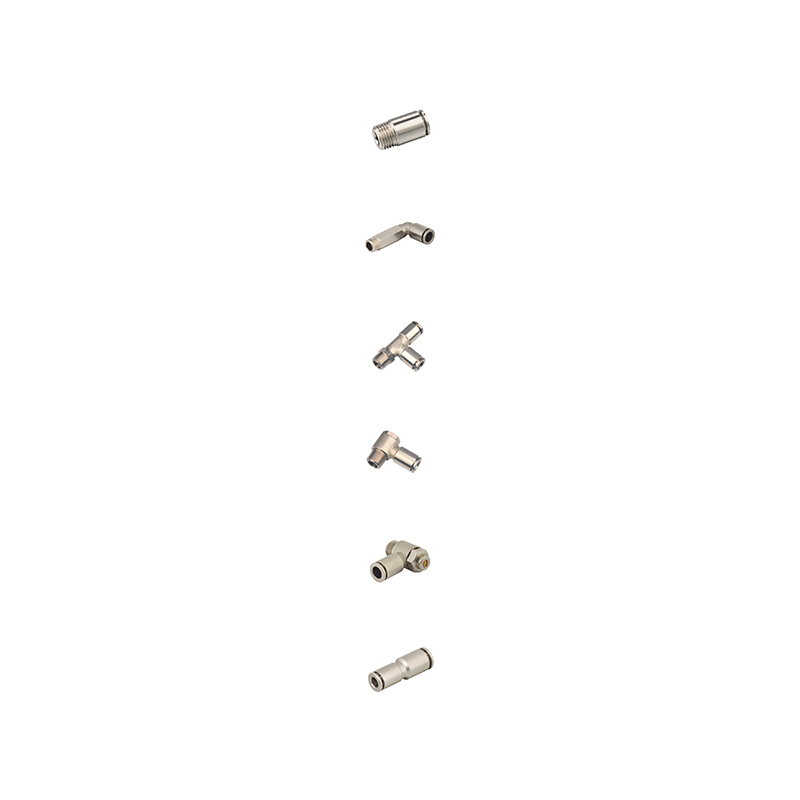

Brass Quick Connect Fittings Pneumatic Accessories

PREV: 304/316 Stainless Steel Quick Connector Pneumatic Accessories NEXT: Metric Connectors Pneumatic Accessories

Parameter

BPC	Series	BPC	Series
8	Tube OD.	3/8	Tube OD.
02	Thread	NPT02	Thread

Using Medium	Clear Air，If use liquid，please contact us
Proof Pressure	1.32Мра
Pressure Range	0-0.9Mpa
Ambient&Fluid Temp.	0-60℃
Applicable Tube Type	PUTube，PE Tube，etc.
Applicable Tube Size	Meter Tube，Inch Tube
Applicable Thread	M Thread，G Tnread，PT Thread，NPT Thread，etc

BPC	Tube OD. × Thread Size			BPOC	Tube OD. × Thread Size			BPCF	Tube OD. × Thread Size
	4-M5	8-02	12-03		4-M5	8-02	12-03		4-M5	8-02	12-03
	4-01	8-03	12-04		4-01	8-03	12-04		4-01	8-03	12-04
	4-02	8-04	14-02		4-02	8-04	14-02		4-02	8-04	14-02
	6-M5	10-01	14-03		6-M5	10-01	14-03		6-M5	10-01	14-03
	6-01	10-02	14-04		6-01	10-02	14-04		6-01	10-02	14-04
	6-02	10-03	16-02		6-02	10-03	16-02		6-02	10-03	16-02
	6-03	10-04	16-03		6-03	10-04	16-03		6-03	10-04	16-03
	6-04	12-01	16-04		6-04	12-01	16-04		6-04	12-01	16-04
	8-01	12-02	16-06		8-01	12-02	16-06		8-01	12-02	16-06
BPL	Tube OD. × Thread Size			BPLL	Tube OD. × Thread Size			BPLF	Tube OD. × Thread Size
	4-M5	8-02	12-03		4-M5	12-03	12-04		4-M5	8-02	12-03
	4-01	8-03	12-04		4-01	12-04	14-03		4-01	8-03	12-04
	4-02	8-04	14-02		4-02	14-03	14-04		4-02	8-04	14-02
	6-M5	10-01	14-03		6-M5	14-04	16-03		6-M5	10-01	14-03
	6-01	10-02	14-04		6-01	16-03	16-04		6-01	10-02	14-04
	6-02	10-03	16-02		6-02	16-04			6-02	10-03	16-02
	6-03	10-04	16-03		6-03				6-03	10-04	16-03
	6-04	12-01	16-04		6-04				6-04	12-01	16-04
	8-01	12-02	16-06		8-01				8-01	12-02	16-06
BPB	Tube OD. × Thread Size			BPD	Tube OD. × Thread Size			BPX	Tube OD. × Thread Size
	4-M5	8-02	12-03		4-M5	8-02	12-03		4-M5	8-02	12-03
	4-01	8-03	12-04		4-01	8-03	12-04		4-01	8-03	12-04
	4-02	8-04	14-02		4-02	8-04	14-02		4-02	8-04	14-02
	6-M5	10-01	14-03		6-M5	10-01	14-03		6-M5	10-01	14-03
	6-01	10-02	14-04		6-01	10-02	14-04		6-01	10-02	14-04
	6-02	10-03	16-02		6-02	10-03	16-02		6-02	10-03	16-02
	6-03	10-04	16-03		6-03	10-04	16-03		6-03	10-04	16-03
	6-04	12-01	16-04		6-04	12-01	16-04		6-04	12-01	16-04
	8-01	12-02	16-06		8-01	12-02	16-06		8-01	12-02	16-06

BPMF	Tube OD. × Thread Size			BPH	Tube OD. × Thread Size			BPZR	Tube OD. × Thread Size			BPG	Tube OD. × Thread Size
	4-M5	8-01	12-03		4-M5	8-01	12-03		4-M5	8-01	12-03		6-4	14-12
	4-01	8-02	12-04		4-01	8-02	12-04		4-01	8-02	12-04		8-4	16-12
	4-02	8-03	14-03		4-02	8-03	14-03		4-02	8-03			8-6	16-14
	4-03	8-04	14-04		4-03	8-04	14-04		4-03	8-04			10-6
	6-M5	10-01	16-03		6-M5	10-01	16-03		6-M5	10-01			10-8
	6-01	10-02	16-04		6-01	10-02	16-04		6-01	10-02			12-8
	6-02	10-03			6-02	10-03			6-02	10-03			12-10
	6-03	10-04			6-03	10-04			6-03	10-04			14-10
	6-04	12-02			6-04	12-02			6-04	12-02
BSL	Tube OD. × Thread Size			BSQ	Tube OD. × Thread Size			BSQF	Tube OD. × Thread Size		BPU	Tube OD. × Tube OD.	BPV	Tube OD. × Tube OD.
	4-M5	8-01	12-03		4-M5	8-01	12-03		1/8-M5	3/8-02		4		4
	4-01	8-02	12-04		4-01	8-02	12-04		1/8-01	3/8-03		6		6
	4-02	8-03	14-03		4-02	8-03	14-03		1/8-02	3/8-04		8		8
	4-03	8-04	14-04		4-03	8-04	14-04		1/8-03	1/2-03		10		10
	6-M5	10-01	16-03		6-M5	10-01	16-03		1/8-04	1/2-04		12		12
	6-01	10-02	16-04		6-01	10-02	16-04		1/4-01			14		14
	6-02	10-03			6-02	10-03			1/4-02			16		16
	6-03	10-04			6-03	10-04			1/4-03
	6-04	12-02			6-04	12-02			1/4-04

Inquiry
